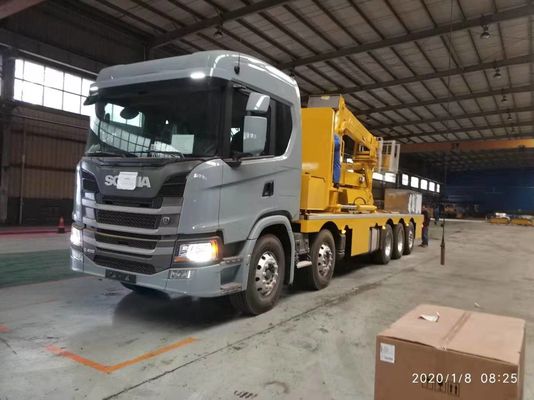

Big Cable Bridge Inspection Vehicle Carbon Steel 22 M Bucket Type

Big Cable Bridge Inspection Vehicle Carbon Steel 22 M Bucket Type
Big Cable Bridge Inspection Vehicle Carbon Steel 22 M Bucket Type Big Cable Bridge Inspection Vehicle Carbon Steel 22 M Bucket Type Big Cable Bridge Inspection Vehicle Carbon Steel 22 M Bucket Type

Large Image :  Big Cable Bridge Inspection Vehicle Carbon Steel 22 M Bucket Type

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5311JQJ
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: Negotiable
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10Units/Months
Port of Delivery:: Shanghai/Ningbo
Detailed Product Description
Specification: 22m Load Of Working Basket: 250kg
Wheel Formula: 8*4 Gearbox: Manual
Sidewalk Width: 4.5m Sound Barrier: 4.6m
Material: Carbon Steel
High Light:

Big Cable Bridge Inspection Equipment

,

22M Bucket Bridge Inspection Equipment

,

Carbon Steel Bridge Inspection Vehicle

22 M Bucket Type Bridge Inspection Vehicle For Big Cable Bridges(HZZ5311JQJ)



With increasing numbers of bridges in the world, safety of bridges becomes a top priority. This needs periodic inspection on all parts of the bridge, which are not easily accessible. These inspections are primarily visual and require hands-on observations in order to check for loose and broken hardware, corrosion, insect damage, and a multitude of other maintenance and safety issues.

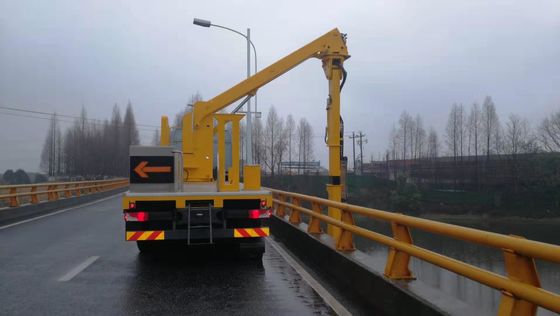

The Bridge Inspection Vehicle is a kind of special-purpose vehicle for bridge inspection personnel to provide operation platform during the inspection process, and can be used for all kinds of large and medium-sized bridge inspection, maintenance and repair, reinforce and etc.



Specifications:



Model

HZZ5311JQJ

Product name

Operating vehicle for bridge detection

Chassis Model

GB450B 10×4×6NA

Driver type

10×4x6

Total mass31

38000(Kg)



Outer dimensions

12700×2500×3990mm

Engine model

DC13

Engine power

450(HP)

Operating range under bridge

0-22.41M

Vertical operating range under the bridge

0-23.3M

The main arm across the width

4.5M

The first scope of rotation

0-90°

The second scope of rotation

0-135°

Rated load platform

250KG

Hydraulic system

The proportion of electro-hydraulic servo systems

Control system

Manual control mode

Cable control mode

Wireless control mode



Big Cable Bridge Inspection Vehicle Carbon Steel 22 M Bucket Type 0



   The Bridge Inspection Vehicle is a kind of special-purpose vehicle for bridge inspection personnel to provide operation platform during the inspection process, and can be used for all kinds of large and medium-sized bridge inspection, maintenance and repair, reinforce and etc.             Vertical operating range under the bridge          Operating range under bridge



Bridge Inspection Vehicle is a high-tech special product integrating machine, electricity, and hydraulic. It has the characteristics of beautiful appearance, compact structure, convenient operation, safety, high speed and efficiency.

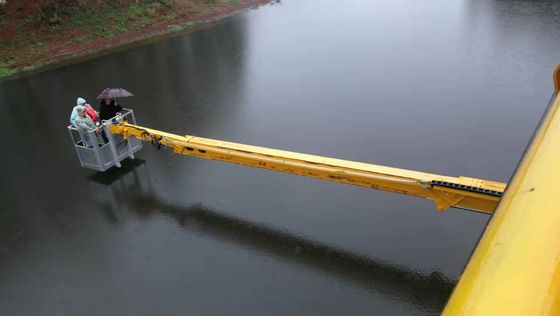

The Bridge Inspection Vehicle can ensure that the staff or related equipment can be quickly and safely transported to each part of the bridge, including and places on the bridge, under bridge and bridge mast. Bucket angle adjusting.
