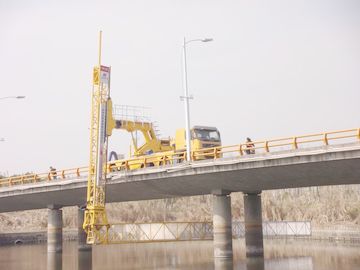

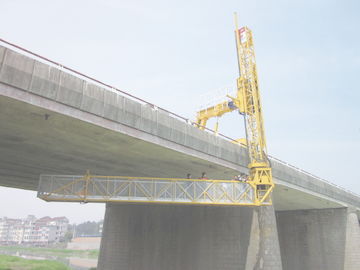

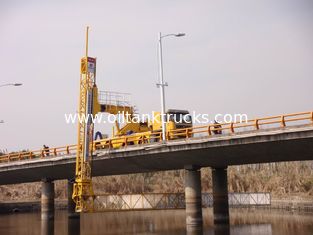

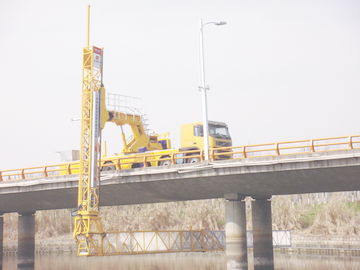

22m 390HP Platform Type Bridge Inspection Vehicle VOLVO FM400 8X4

22m 390HP Platform Type Bridge Inspection Vehicle VOLVO FM400 8X4
22m 390HP Platform Type Bridge Inspection Vehicle VOLVO FM400 8X4 22m 390HP Platform Type Bridge Inspection Vehicle VOLVO FM400 8X4 22m 390HP Platform Type Bridge Inspection Vehicle VOLVO FM400 8X4 22m 390HP Platform Type Bridge Inspection Vehicle VOLVO FM400 8X4

Large Image :  22m 390HP Platform Type Bridge Inspection Vehicle VOLVO FM400 8X4

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5320JQJ22
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 2Units/Month
Port of Delivery:: Shanghai/Ningbo
Detailed Product Description
TYPE: HZZ5320JQJ22 CHASSIS TYPE: VOLVO FM400 8X4
TOTAL MASS: 32000KG OUTER DIMENSION: 12420X4000X2500
MAX SPEED: 85KM/H MAX LOAD: 600KG
MAX LOAD OF FRONT END: 250KG VERTICAL OPERATING RANGE UNDER BRIDGE: 6350mm
The Single Boom Across Range: 7M FIRST SCOPE OF ROTATION: 0~90°
SECOND SCOPE OF ROTATION: 0~180°
High Light:

bridge inspection vehicle

,

underbridge inspection truck

,

Platform Type Bridge Inspection Vehicle

22m Platform Type 8x4 (Euro IV) VOLVO 390HP chassis bridge inspection vehicle / 22m 390HP Volvo 8x4 (Euro IV) Platform Type Operation Truck for Bridge Inspect



Quick Details:

1. Operating length: 22m

2. Chassis: Volvo

3. Drive Type: 8x4

4. Vehicle Type: Platform Type

5. Enigne Power: 394HP

6. Emission Stand: Euro IV



Bridge Inspection Truck: The operating truck for bridge detection, as its name suggests, is designed to help detect the performance and reliability of a bridge. Reasonable structure, simple operation, more safety design. The new platform design has imporve much reliability and stability. Much safety for sending the operator into any location of the bridges. The new developed product with it’s own exported chassis and some OEM components, such as US POCLAIN amble motor, US KOHLAR emergency power supply, Germany “HAWE” Mutiple Valve, Italy “WOLFF” valve etc. greatly increase the service life, easy maintenance. Three hydraulic section with broader extension, rotary platform, luffing machanism together created a three-dimensional folding, much more suit for those flyovers, long-span, approach heavy duty bridges.

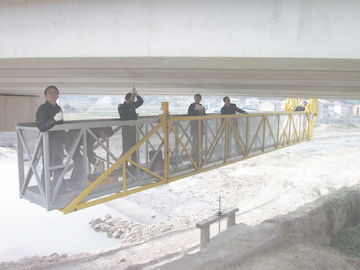

It is also able to run in extremely worse environments, even on the elevation 2000m, 98% high humidity weather, and 6 Class land wind. The design of the platform with much broader detection range between 12m to 22m and 1.1m width appers more secure working conditions.





Specifications:

TYPE

HZZ5320JQJ22

NAME

Platform Type Bridge Inspection Vehicle

CHASSIS TYPE

VOLVO FM400 8X4

TOTAL MASS

32000KG

OUTER DIMENSION

12420X4000X2500

MAX SPEED

85KM/H

HYDRAULIC SYSTEM



SELF-WALK PART

Electro-hydraulic proportional servo system

OPERATING RANGE UNDER BRIDGE(TOTAL)

Machanical hydrostatic transmission

MAX. HORIZONTAL RANGE(EFFECTIVE)

21000mm

MAX. OVERBRIDGING OF SIDEWALK

2000~3800mm

MAX. CROSSING OF SOUND BARRIER

3500mm

MAX. LOAD ON PLATFORM

800KG

MAX. LOAD ON TELESCOPIC PLATFORM

400KG

MAX. LOWERING DEPTH

6350mm

THE SINGLE BOOM ACROSS RANGE

7M

FIRST ROTATION OF PLATFORM



0~90°

SECOND ROTATION OF PLATFORM

0~180°

BALANCER

3.5T,5T Movable balancer, fixed balancer

OPERATING RANGE FOR MOVBLE BALANCER

950MM

ADDITIONAL STABIZER FOR THE REAR AXLE

Oil cylinder

CONTROL SYSTEM

Wired/wireless/manual

STANDBY GENERATOR

US kohler





Competitive Advantage:



  1. Imported VOLVO Chassis, with 390HP large engine power, Euro IV. Has more merits as: low oil consumption, environmental design, ensure high stability.
  2. Air suspension system can adjust the chasis height automaticly, highly increase the stability for such a pot hole ground.
  3. Hydrostatic drive, highly achieved secure in slope and wet road conditions.
  4. Those hydraulic steering wheel system, greatly balance the widthness while operating.
  5. Two sets of control system on platform either into the control box respectively, allows the operator monitor safety.
  6. The hydraulic synchronous interlock device, intercom system, safty lock valve to ensure the safty handing.
  7. US Kohler emergency power supply, able to achieve the folding reset, in case the engine doesn' attent well.
  8. Max. platform payload is 600kg (can affordable 6-7 operators), the tail of the platform payload is about 250kg. The extendable folding platform can be adjustable luffing from 2-4meter, greatly imporve the inspection area under the bridge.
  9. High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also keep the limitation of max. drop height for 7meter only.
