6x4 18M Dongfeng Truck Mounted Access Platform / Bridge Inspection Tools DFH1310A1

China 6x4 18M Dongfeng Truck Mounted Access Platform / Bridge Inspection Tools DFH1310A1 supplier
6x4 18M Dongfeng Truck Mounted Access Platform / Bridge Inspection Tools DFH1310A1 supplier 6x4 18M Dongfeng Truck Mounted Access Platform / Bridge Inspection Tools DFH1310A1 supplier 6x4 18M Dongfeng Truck Mounted Access Platform / Bridge Inspection Tools DFH1310A1 supplier 6x4 18M Dongfeng Truck Mounted Access Platform / Bridge Inspection Tools DFH1310A1 supplier 6x4 18M Dongfeng Truck Mounted Access Platform / Bridge Inspection Tools DFH1310A1 supplier 6x4 18M Dongfeng Truck Mounted Access Platform / Bridge Inspection Tools DFH1310A1 supplier

Large Image :  6x4 18M Dongfeng Truck Mounted Access Platform / Bridge Inspection Tools DFH1310A1

Product Details:

Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5311JQJDF

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: NUDED CARGO
Delivery Time: 45days
Payment Terms: L/C,T/T
Supply Ability: 100UNIT PER YEAR
Port of Delivery:: Shanghai / Ningbo
Contact Now
Detailed Product Description
Model: HZZ5311JQJDF Materail: Steel Structure
Color: Yellow Or As Customer Demand CHASSIS TYPE: VOLVO FM400 8X4
TOTAL MASS: 31000KG OUTER DIMENSION: 12150X4000X2500
MAX SPEED: 85KM/H MAX LOAD: 300KG

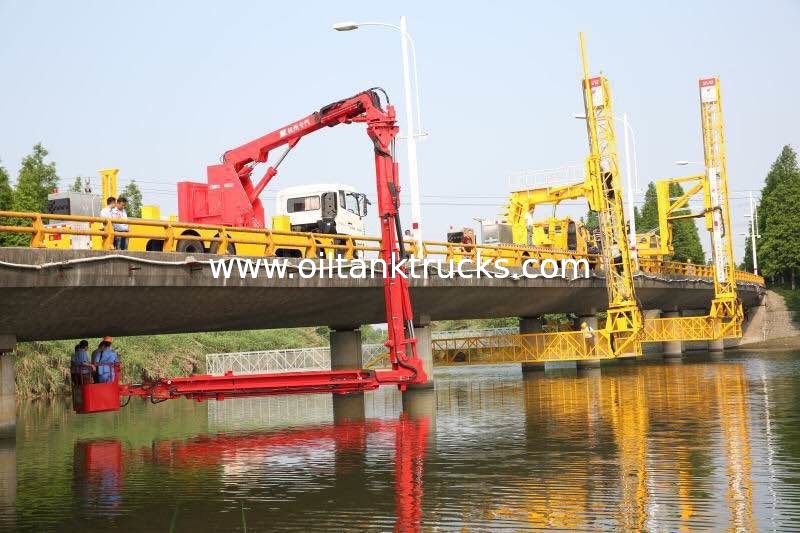

18m Bucket type Bridge Inspection truck Easy Access Easy Operation Safety underbridge depth 23.3m

6x4 18M Dongfeng Bucket Bridge Inspection Equipment For Bridge Detection , DFH1310A1

1. Total Height: 18m
2. Chassis: Dongfeng
3. Engine Power: 230HP
4. Drive Type: 6x4
5. Vehicle Type: Bucket Type
6. Name: Bridge Inspection Vehicle

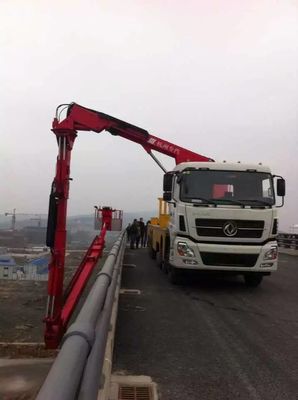

Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.

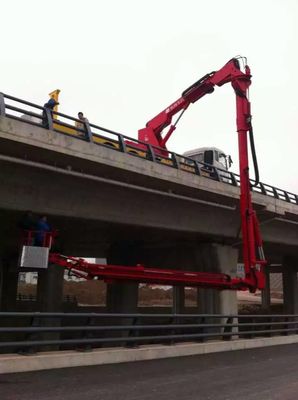

The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

Specifications:

Model HZZ5311JQJ DF
Product name Bucket type bridge inspection vehicle
Chassis Model
Driver type 6×4
Total mass 31000(Kg)

Outer dimensions
12150×2500×3990mm
Engine model DONGFENG CUMMINS
ISDe230 30, ISDe245 30, ISDe270 30
Engine power 230,245,270(HP)
Max. horizontal range 0-18.1M
Max. lowering depth 0-23.3M
Max. overbridging of sidewalk 3-5.4M
The first scope of rotation 0-90°
The second scope of rotation 0-135°
Max. load on platform 300KG
Hydraulic system The proportion of electro-hydraulic servo systems
Control system
Manual control mode Cable control mode Wireless control mode



Vertical working range under bridge Horizontal workingrange under bridge

6x4 16M Dongfeng Bucket Bridge Inspection Equipment For Bridge Detection , DFL1250A9


Competitive Advantage:
Patented outrriger: Main arm across range average 2.5m in a norminal design which greatly increase lateral stability, prevent side-tip, make sure operators work at a secure condition. In China, most sidewalk with bicyclepath at about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Craw of the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge.
