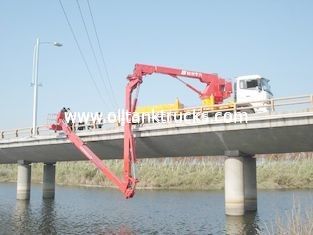

Dongfeng 6x4 6m 270HP Bucket Type Bridge Access Equipment DFL1250A9

Dongfeng 6x4 6m 270HP Bucket Type Bridge Access Equipment DFL1250A9
Dongfeng 6x4 6m 270HP Bucket Type Bridge Access Equipment DFL1250A9 Dongfeng 6x4 6m 270HP Bucket Type Bridge Access Equipment DFL1250A9 Dongfeng 6x4 6m 270HP Bucket Type Bridge Access Equipment DFL1250A9 Dongfeng 6x4 6m 270HP Bucket Type Bridge Access Equipment DFL1250A9

Large Image :  Dongfeng 6x4 6m 270HP Bucket Type Bridge Access Equipment DFL1250A9

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5240JQJ 16
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 2Units/Month
Port of Delivery:: Shanghai/Ningbo
Detailed Product Description
Hydraulic System: The Proportion Of Electro-hydraulic Servo Systems Engine Power: 230,245,270(HP)
Engine ModeL: DONGFENG CUMMINS ISDe230 30, ISDe245 30, ISDe270 30 Model: HZZ5240JQJ 16
G.V.W.: 24000(Kg) Outer Dimensions: 11240×2500×3930mm
Chassis Model: DFL1250A9
High Light:

vehicle mounted access platforms

,

bridge inspection truck

,

Bucket Type Bridge Access Equipment



Dongfeng 6x4 Bucket Type Bridge Inspection Equipment , bridge inspection platform 16m 270HP



Quick Details:



Model:HZZ5240JQJ 16
Product name:Bucket type Bridge Insepction unit
Chassis Model:DFL1250A9
Driver type:6×4
Engine power:230,245,270(HP)



The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.



Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.



Specifications:



Model HZZ5240JQJ 16
Product name Bucket type Bridge Insepction unit
Chassis Model DFL1250A9
Driver type 6×4
G.V.W. 24000KG



Outer dimensions

11240×2500×3930mm
Engine model

DONGFENG CUMMINS

ISDe230 30, ISDe245 30, ISDe270 30

Engine power 230,245,270(HP)
Max. horizontal range 0-16.41M
Max. lowering depth 0-23.3M
Max. overbridging of sidewalk 3-5.4M
The first scope of rotation 0-90°
The second scope of rotation 0-180°
Max. load on platform 300KG
Hydraulic system The proportion of electro-hydraulic servo systems
Control system
Manual control mode Cable control mode Wireless control mode



Dongfeng 6x4 Bucket Type Bridge Inspection Equipment , bridge inspection platform 16m 270HP



Vertical working range under bridge Horizontal working range under bridge



Competitive Advantage:


Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge selfly.
