High Efficiency 22m Under Bridge Access Equipment With Hydrostatic Drive VOLVO 8x4

High Efficiency 22m Under Bridge Access Equipment With Hydrostatic Drive VOLVO 8x4
High Efficiency 22m Under Bridge Access Equipment With Hydrostatic Drive VOLVO 8x4 High Efficiency 22m Under Bridge Access Equipment With Hydrostatic Drive VOLVO 8x4 High Efficiency 22m Under Bridge Access Equipment With Hydrostatic Drive VOLVO 8x4 High Efficiency 22m Under Bridge Access Equipment With Hydrostatic Drive VOLVO 8x4

Large Image :  High Efficiency 22m Under Bridge Access Equipment With Hydrostatic Drive VOLVO 8x4

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5320JQJ22
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 2Units/Month
Port of Delivery:: Shanghai/Ningbo
Detailed Product Description
Color: Yellow Or Depend On Customer's Requirement VERTICAL OPERATING RANGE UNDER BRIDGE: 6350mm
MAX LOAD OF FRONT END: 250KG MAX LOAD: 600KG
THE MAIN ARM ACROSS HEIGHT: 3500MM THE MAIN ARM ACROSS WIDTH: 2000~3800mm
OPERATING RANGE UNDER BRIDGE(EFFECTIVE): 21000MM MAX SPEED: 85KM/H
OUTER DIMENSION: 12420X4000X2500 TOTAL MASS: 32000KG
TYPE: HZZ5320JQJ22 CHASSIS TYPE: VOLVO FM400 8X4
High Light:

under bridge access platforms

,

bridge inspection truck

,

High Efficiency Bridge Access Equipment

High Efficiency 22m under Bridge access equipment Inspection Truck With Hydrostatic Drive VOLVO 8x4

High Efficiency 22m Bridge Inspection Truck With Hydrostatic Drive VOLVO 8x4



Quick Details:



Model:HZZ5320JQJ22

Product name:Latice Mode Bridge Inspection Vehicle, Bridge Access Equipment

Chassis Model:VOLVO FM400 8X4

Driver type:6×4

Advantage:low oil consumption, environmental design, ensure high stability, Under a bridge keep you safe and stable.

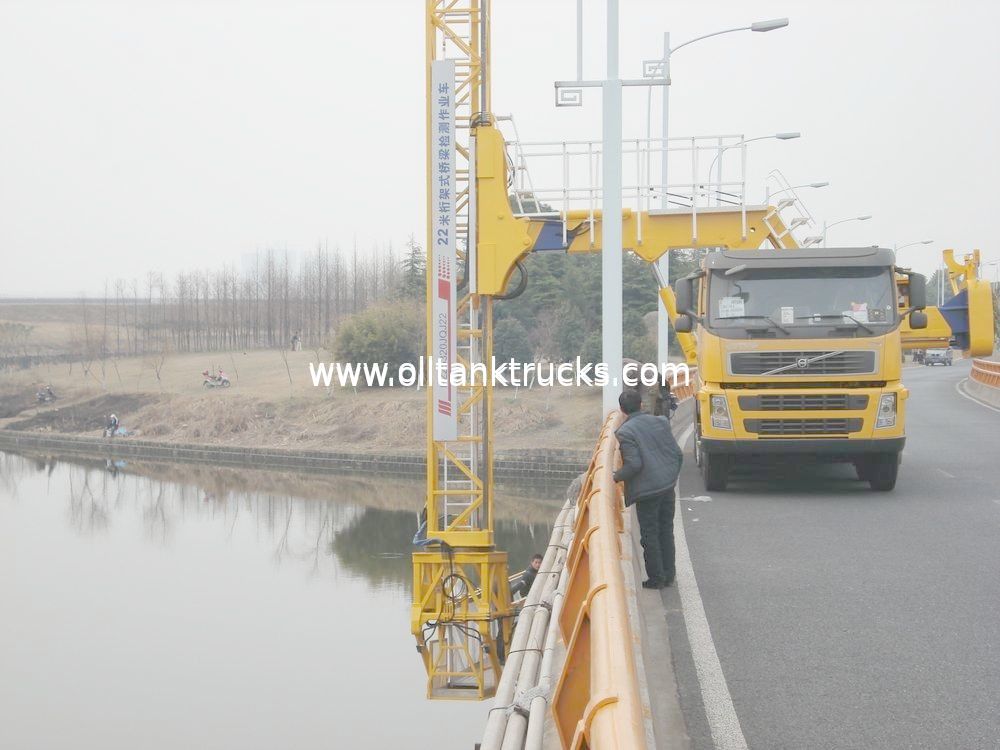

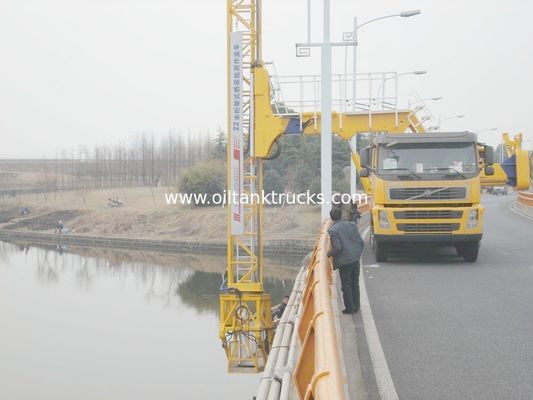

Bridge Inspection Vehicle is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features. It can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed, in the meanwhile complete the work in the shortest time. It also meet the testing requirements for most different bridges.



The new platform design has imporve much reliability and stability and safety. The new developed product with it’s own exported chassis and some OEM components, such as US POCLAIN amble motor, US KOHLAR emergency power supply, Germany “HAWE” Mutiple Valve, Italy “WOLFF” valve etc. greatly increase the service life, easy maintenance. Three hydraulic section with broader extension, rotary platform, luffing machanism together created a three-dimensional folding, much more suit for those flyovers, long-span, approach heavy duty bridges.Bridge Inspection Truck: The operating truck for bridge detection, as its name suggests, is designed to help detect the performance and reliability of a bridge. Reasonable structure, simple operation, more safety design.



It is also able to run in extremely worse environments, even on the elevation 2000m, 98% high humidity weather, and 6 Class land wind. The design of the platform with much broader detection range between 12m to 22m and 1.1m width appers more secure working conditions.





Specifications:



TYPE HZZ5320JQJ22
NAME Latice Mode Bridge Inspection Vehicle
CHASSIS TYPE VOLVO FM400 8X4
TOTAL MASS 32000KG
OUTER DIMENSION 12420X4000X2500
MAX SPEED 85KM/H
HYDRAULIC SYSTEM
SELF-WALK PART Electro-hydraulic proportional servo system
OPERATING RANGE UNDER BRIDGE(TOTAL) Machanical hydrostatic transmission
OPERATING RANGE UNDER BRIDGE(EFFECTIVE) 21000mm
THE MAIN ARM ACROSS WIDTH 2000~3800mm
THE MAIN ARM ACROSS HEIGHT 3500mm
MAX LOAD 600KG
MAX LOAD OF FRONT END 250KG
VERTICAL OPERATING RANGE UNDER BRIDGE 6350mm
The single boom across range 7M
FIRST SCOPE OF ROTATION 0~90°
SECOND SCOPE OF ROTATION 0~180°
Balancer 3.5T,5T Movable balancer, fixed balancer
Operating range for movble balancer 950MM
Additional stabler for the rear axle Oil cylinder
CONTROL SYSTEM Wired/wireless/manual
RESERVE POWER US kohler generator





Competitive Advantage:



  1. Imported VOLVO Chassis, with 390HP large engine power, Euro IV. Has more merits as: low oil consumption, environmental design, ensure high stability.
  2. Air suspension system can adjust the chasis height automaticly, highly increase the stability for such a pot hole ground.
  3. Hydrostatic drive, highly achieved secure in slope and wet road conditions.
  4. Those hydraulic steering wheel system, greatly balance the widthness while operating.
  5. Two sets of control system on platform either into the control box respectively, allows the operator monitor safety.
  6. The hydraulic synchronous interlock device, intercom system, safty lock valve to ensure the safty handing.
  7. US Kohler emergency power supply, able to achieve the folding reset, in case the engine doesn' attent well.
  8. Max. platform payload is 600kg (can affordable 6-7 operators), the tail of the platform payload is about 250kg. The extendable folding platform can be adjustable luffing from 2-4meter, greatly imporve the inspection area under the bridge.
  9. High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also keep the limitation of max. drop height for 7meter only.
