Product Details:
Payment & Shipping Terms:
|
| Model: | HZZ5256GJY | Chassis Model: | HFC1255KR1T |
|---|---|---|---|
| Chassis Manufacturer: | JAC | Outer Dimension(mm): | 11280×2495×3350 |
| Tank Effective Volume (m3): | 20 | Transporting Medium: | Gas/Diesel |
| Wheelbase (mm): | 1700+5000 1700+4600 | Total Mass(Kg): | 24900 |
| Tare Weight(Kg): | 11205 | Payload(Kg): | 13500 |
| Engine Model/Engine Power(kw): | CA6DF3-18E3/143 CA6DF3-20E3/155 | Fuel Type: | Diesel |
| Vehicle Emission Standard: | National III | Spec. Of Tyre: | 10.00-20 10.00R20 11.00-20 11.00R20 |
| Max. Speed(km/h): | 98 | ||
| High Light: | fuel tanker trailers,oil tanker truck,Heavy Duty Oil Tank Truck |
||

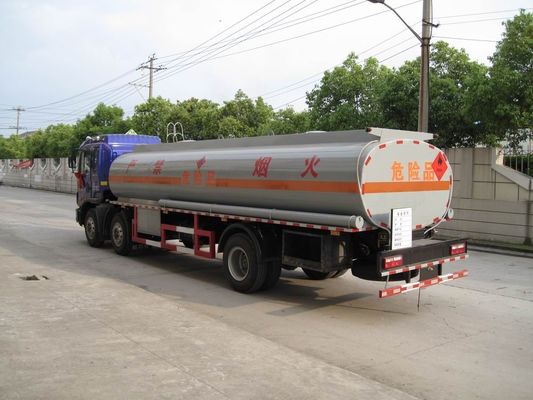

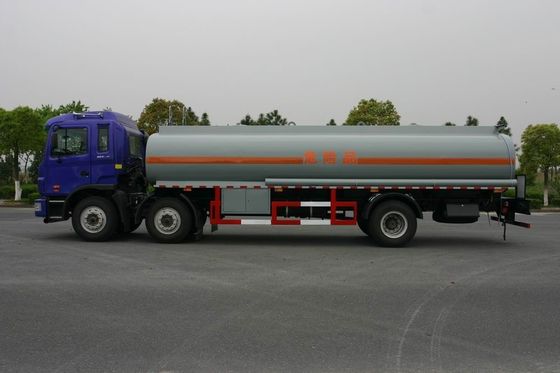

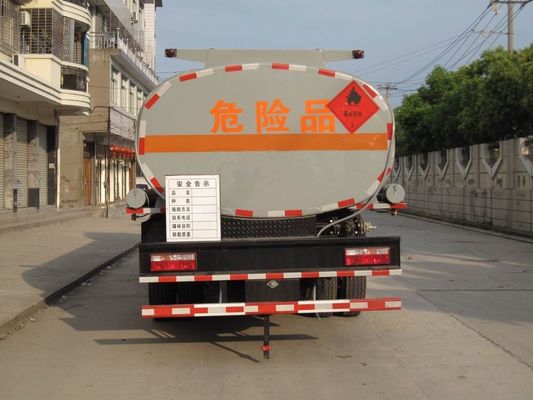

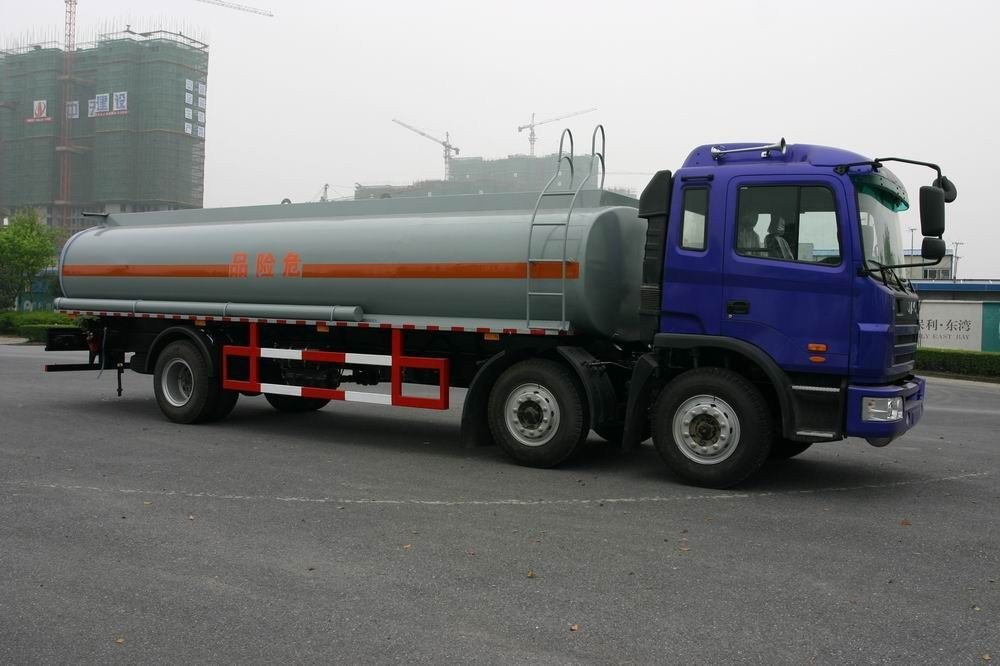

Oil Tank Truck Heavy Duty 6x2 JAC / Tanker Truck With CA6DF3-18E3
Quick Details
· Condition:New
· Storage:Oil
· Drive Wheel:6x2
· Horsepower:150 - 250hp
· Transmission Type:Manual
· Fuel Type:Diesel
· Tank Volume:5001 - 10000L
· Engine Capacity:6740
· Dimensions (L x W x H) (mm):11280x2495x3350
· Model Number:HZZ5256GJY
· Gross Vehicle Weight:24900
· Tyre:10.00R20, 11.00R20
· Number of Tyre:10 pieces
· Total mass (kg):24900
· Kerb weight (kg):11205
· Payload (kg):13500
· Engine Model:CA6DF3-18E3,YC6J180-30
· Wheelbase (mm):1700+5000, 1700+4600
· Max. Speed:98 km/h
· Outer tank dimensions(mm) LxWxH:8200x2300x1400
Specifications:
Model | HZZ5256GJY |
Chassis Model | HFC1255KR1T |
Chassis Manufacturer | JAC |
Outer dimension(mm) | 11280×2495×3350 |
Tank Effective Volume (m3) | 20 |
Transporting Medium | Gas/Diesel |
Wheelbase (mm) | 1700+5000 |
Total mass(Kg) | 24900 |
Tare weight(Kg) | 11205 |
Payload(Kg) | 13500 |
Engine model/Engine power(kw) | CA6DF3-18E3/143 |
Fuel type | Diesel |
Vehicle emission standard | National III |
Spec. of Tyre | 10.00-20 |
Max. Speed(km/h) | 98 |
The fuel tank transportation series, as to the whole tank truck, usage for transport the gasoline, light diesel oil, petroleum and other non-corresive fuel properties, rarely impact the damage for oil pump, generator, refullering gun,etc. We use second-class Chinese and international chassis to refit, such as Faw Group, Dongfeng, Sino Truck, UD Nissan, Auman, Isuzu etc. Widely use in various transportation units, chemical companies, gas stations and other industries to transport and storage of dangerous chemical liquid products, gasoline, diesel and so on.
Competitive Advantage:
- High-power, Lighten weight, Nice performance, widely used in oil station and some logistic companies.
-We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.
-The liquid tanker is produced with the special equipments such as automatic welding machine(8m) and CNC plasma cutting and automatic submerged arc welding forming which can realize welding by one side in shape by two sides, having the merits of stable quality, less cost, and good-looking.
-Mobile refuelling suit for such remote area, also convient supply for those heavy duty construction equipments.
