Product Details:
Payment & Shipping Terms:
|
| Model: | HZZ5256GJY | Chassis Model: | HFC1255KR1T |
|---|---|---|---|
| Tank Effective Volume (m3): | 20 | Transporting Medium: | Gas/Diesel |
| Wheelbase (mm): | 1700+5000 1700+4600 | Total Mass(Kg): | 24900 |
| Tare Weight(Kg): | 11205 | Payload(Kg): | 13500 |
| Engine Model/Engine Power(kw): | CA6DF3-18E3/143 CA6DF3-20E3/155 | Vehicle Emission Standard: | National III |
| Spec. Of Tyre: | 10.00-20 10.00R20 11.00-20 11.00R20 | Max. Speed(km/h): | 98 |
| High Light: | oil tanker trailer,fuel tanker trailers |
||

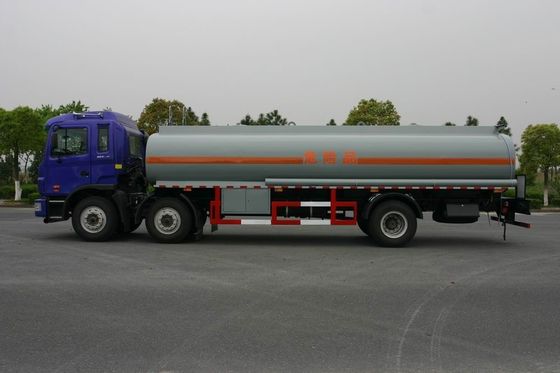

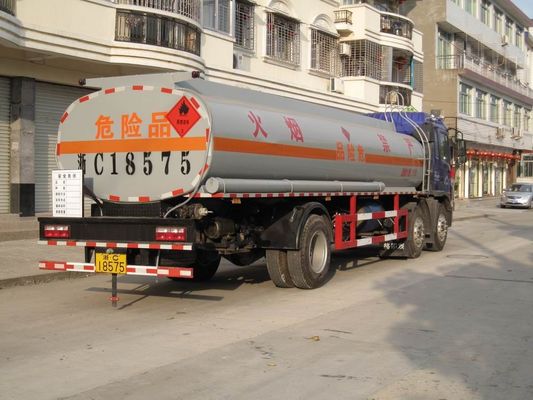

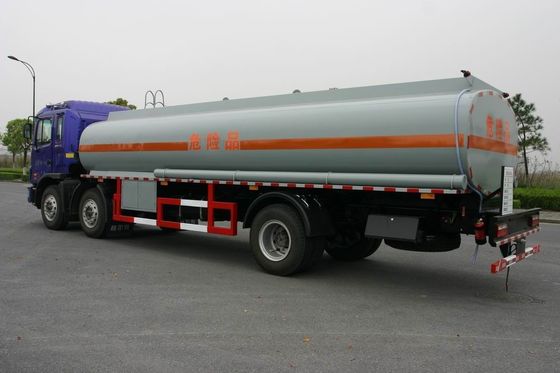

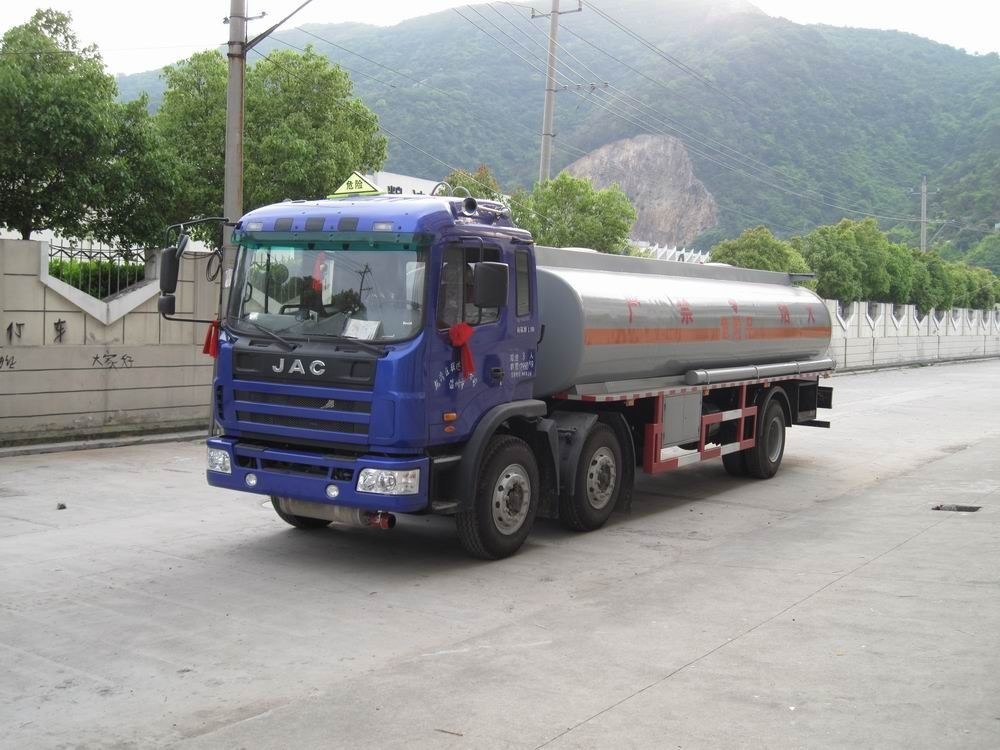

JAC Mobile Refueling Oil tank truck 6x2 , Oil Delivery Trucks 20000L
Quick Details:
1. Name: fuel transport trucks
2. Drive Wheel: 6x2
3. Chassis Manufacturer: JAC
4. Outer dimension(mm): 11280×2495×3350
5. Transporting Medium: Gas/Diesel
Widely use in various transportation units, chemical companies and other logistic industries.The fuel tank transportation series, as to the whole tank truck, usage for transport the gasoline, light diesel oil, petroleum and other non-corresive fuel properties, rarely impact the damage for oil pump, generator, refullering gun,etc. We use second-class Chinese and international chassis to refit, such as Faw Group, Dongfeng, Sino Truck, UD Nissan, Auman, Isuzu etc.
Specifications:
|
Model |
HZZ5256GJY |
|
Chassis Model |
HFC1255KR1T |
|
Chassis Manufacturer |
JAC |
|
Outer dimension(mm) |
11280×2495×3350 |
|
Tank Effective Volume (m3) |
20 |
|
Transporting Medium |
Gas/Diesel |
|
Wheelbase (mm) |
1700+5000 |
|
Total mass(Kg) |
24900 |
|
Tare weight(Kg) |
11205 |
|
Payload(Kg) |
13500 |
|
Engine model/Engine power(kw) |
CA6DF3-18E3/143 CA6DF3-20E3/155 |
|
Fuel type |
Diesel |
|
Vehicle emission standard |
National III |
|
Spec. of Tyre |
10.00-20 |
|
Max. Speed(km/h) |
98 |
Competitive Advantage:
- High-power, Lighten weight, Nice performance, widely used in oil station and some logistic companies.
-We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.
-The liquid tanker is produced with the special equipments such as automatic welding machine(8m) and CNC plasma cutting and automatic submerged arc welding forming which can realize welding by one side in shape by two sides, having the merits of stable quality, less cost, and good-looking.
