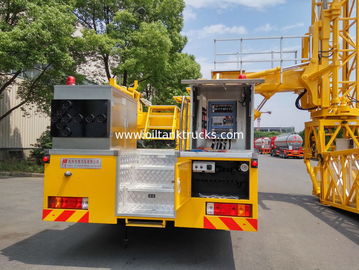

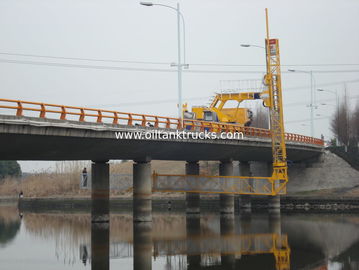

National V 15+2m Aluminum Under Bridge Platform Truck Span Width 2.5 Meters

National V 15+2m Aluminum Under Bridge Platform Truck Span Width 2.5 Meters
National V 15+2m Aluminum Under Bridge Platform Truck Span Width 2.5 Meters National V 15+2m Aluminum Under Bridge Platform Truck Span Width 2.5 Meters National V 15+2m Aluminum Under Bridge Platform Truck Span Width 2.5 Meters National V 15+2m Aluminum Under Bridge Platform Truck Span Width 2.5 Meters

Large Image :  National V 15+2m Aluminum Under Bridge Platform Truck Span Width 2.5 Meters

Product Details:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: China Jinggong
Certification: CCC
Model Number: HZZ5251JQJ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Nude
Delivery Time: 2 month
Supply Ability: 100 unit per year
Detailed Product Description
Color: Yellow Size: Working Platform Length 15+2m
Material: Aluminum Aluminum: Bridge Inspection
Span Width: 2.5m Span Height: 3.1m
High Light:

under bridge access platforms

,

snooper truck

,

Aluminum Under Bridge Platform Truck





FAW chassis National V 15+2m aluminum platform Bridge Inspection Truck



Main description:
Bridge Inspection Vehicle is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features. It can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed, in the meanwhile complete the work in the shortest time. It also meet the testing requirements for most different bridges.

FAW chassis National V 15+2m aluminum platform Bridge Inspection Truck  good performance safe stable

Platform type Bridge inspection vehicle used FAW chassis, drive mode is 6 × 4, the maximum driving speed is 90km / h, maximum working speed is 10m/min, maximum operating inspection speed is 10m/min, and good view cab with air conditioning system and FM / AM radio, it is very suitable for large bridges, overpasses, approach bridges and other various types of bridge preventive inspection.



Product standard:

QCT826-2010 Bridge Inspection Vehicle
GB1589 Outer dimension, axle load and mass limit for Road vehicle
GB/T 3766 General technical conditions for hydraulic system
GB 4785 Installation rule for vehicle and exterior lighting signal
GB 7258 Safety specifications for vehicle operating on roads
GB/T 7935 General technical conditions for hydraulic component
GB/T 9969.1 Instructions on industrial products
GB 11567.1 Side protection requirements for vehicle and trailer
GB 11567.2 Rear and bottom protection requirements for vehicle and trailer
GB/T 12534 General rules of the road test method for vehicle
GB/T 18411 Product label for vehicle
JB/T 5943 General technical requirements for engineering machinery welding
QC/T 252 Type testing procedures for special vehicle
QC/T 484 Vehicle paint coating
QC/T 719 High-altitude operation vehicle
QC/T 29104 Hydraulic oil solid pollution limits for vehicle hydraulic system
QC/T 29105 Hydraulic oil solid pollution test method for vehicle hydraulic system

Main characteristic:

1. Leading Technology
It is the high-tech products which has dozens of patents for an invention and utility model patents, and developed with comprehensive facts for the bridge structure, to ensure the technology and performance of vehicle is located in the domestic and overseas leading level.


2.Optimization Chassis
Used FAW chassis, attractive appearance, strong power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work.


3.Reliable Performance
Vehicle electrical, hydraulic control systems used all imported components; Main structure parts made of imported high-strength steel, welded with imported high-strength welding wire.


4.Loading Capacity is strong
Max. load on platform is 800kg.


5.Wide range of application
Horizontal range: 8000-17000mm, Max. crossing of sound barrier: 2200mm-3100mm, Max. overbridging of sidewalk:1700-2500mm.


6.High Working Efficiently
Can be inspected the entire fan of bottom of bridge at the same time, used mechanical hydrostatic self-propelled patent technology, the operating speed is 10m/min.


7.Powerful Communication Function
Configure the video image monitoring system, enabling multi-party video intercom, platform monitoring, reverse video and other functions to ensure smooth communication.


8. With Complete Accessory
Users may need to select the individual of various types configuration to extend bridge inspection vehicle’s functions.


9.High Adaptability To Circumstance
Has a good performance in high temperatures, low temperatures, high humidity and other harsh natural environment, such as elevation of 2000m, ambient temperature -20 ℃ to +50 ℃, relative humidity 98%, wind level 6 that also can work properly.


10. Good operation performance
Equipped with imported wireless remote control(original from Germany NBB), the control distance is 100 meters.



Main specification for bridge Inspection unit:

Type Platform type
Max. horizontal range 15+2M
Max. lowering depth 6800mm
Width of platform 1080mm
Space required on bridge 3000mm
Max. load on platform 800KG
Max. load on telescopic platform 200KG
Max. overbridging of sidewalk 2500mm
Max. crossing of sound barrier 3100mm
Rotation of platform 180°
G.V.W 25000KG
Overall dimensions 11000(L)×2500(W)×4000 (H)mm

Main specification for chassis:

Chassis Manufacturer FAW
Drive Select LHD
Model CA5250JSQP63K1L5T1E5
No. Of Axle 3
Drive Type Second axle, Third axle
Tyre 295/80 R22.5
No. Of Tyre 10
Max. speed(km/h) 90
Engine Manufacturer FAW
Engine Configuration Longitudinally set
Model CA6DK1-28E5
Type

Inline six-cylinder, four stroke, water-cooled,

Turbocharge inter-cooled diesel engine.

Displacement(mL) 7146
Fuel Type Diesel
Emission Standard Euro 5

Rated Power(kw)

/speed(r/min)

209/2300

Max. Torque(N.m)

/Speed(r/min)

1100/1200
Cab Manufacturer FAW
Type Cab over engine, tilting type with sleeper
Passengers 2 Person
Gearbox Type CA10TA
No. of Forward gears 10
Gearbox ratios

i1=14.734,i2=11.000,i3=8.166,i4=6.003,i5=4.464,

i6=3.301, i7=2.464,i8=1.830,i9=1.345,i10

Steering Steering Type Recycling Ball Integral Power Steering
Front Axle Type Integral forging, “I” shaped section



Rear Axle



Type

Rear axle for the casting bridge, the overall impact

of welding bridge shell, single-stage slowdown

Final Drive Ratio 4.875
Brake System Type Double circuit pneumatic brake system
Drive Type Foot pedal



Suspension



Front

Type Leaf spring, dependent suspension
No. of Leaf Spring 11



Rear

Type Leaf spring, dependent suspension
No. of Leaf Spring 11

Chassis:
 Chassis designed and manufactured by FAW company, used low-roof cab with nice appearance and wide vision.
 Cab optional air condition, driver’s seat can be moved front and back, back and lift height of the seat can be adjusted, the cab also can take 2 passengers.
 Instrument board configuration: Speedometer, water temperature, fuel gauge, engine speed recorder,alarm indicator, gear position indicator light,turning indicator light.
 Rear axle equipped with four hydraulic cylinder for supporting wheel, supporting the chassis frame when working, to increase stability and safety for the vehicle.
 The control panel equipped with button or switch for hydraulic pump control, transfer case(retarder motor) control, walking control.

Horizontal truss :
 Horizontal truss is consists of outside and inside truss.
 Outside truss is made of high-strength steel, used advanced welding process to ensure the light weight.
 Inside truss welded by high-strength aluminum alloy, it has nice appearance and light weight, meanwhile has sufficient strength and rigidity.
 Through two supporting rollers to support inside truss to move in the rail.
The telescoping of horizontal truss through hydraulic motor drive the chain to move.
 Outside truss mounted electrical limit for inside truss to ensure the safety of control.


Vertical truss :
 Vertical truss is welded by high strength seamless torque tube profiles.
 Vertical truss using left and right guide rail structure, it has nice appearance and light weight while has sufficient strength and rigidity.
 Vertical truss using single cylinder to control telescopic, the range is 7000mm.

Overturning frame mechanism :
 The overturning frame mechanism is mainly consists of overturning frame, cylinder, related fixed shaft, slider and other components.
 The overturning frame provides telescopic slides for vertical truss, compact structure and nice appearance.
 The overturning frame using overturning cylinder to support, structural stability and work reliable.
Main boom mechanism:
 The main boom mechanism is four-link parallelogram lifting mechanism, mainly made of lifting hydraulic cylinder, connecting rod, main boom, pin and other components..
 Lifting hydraulic cylinder equipped with hydraulic lock, to ensure that when the hydraulic pipe happen burst accident the main boom and other mechanism do not fall.
 The connecting rod welded by high strength plate, strength safety factor higher to ensure the safety of the main boom lift and down.

Second rotating platform mechanism:
 It is the rotating control mechanism for horizontal truss, is mainly made of slewing reducer,slewing bearing, small turntable, pin and other components.
 Slewing reducer equipped with rotary cushion valve to ensure the safety at work; When happen the hydraulic pipe burst accident that the rotating mechanism is automatically locked.
 Small turntable welded by high strength steel plate, high strength safety factor to ensure the safety of horizontal truss in the working process.

First rotating mechanism:
 The first rotating mechanism to provide support for whole truss, is mainly composed of first rotating cylinder, slewing bearing, large turntable, pin and other components.
 First rotating cylinder equipped with balancing valves to ensure when happen the hydraulic pipe burst accident that the first rotating mechanism is automatically locked.
 Large turntable welded by high strength steel plate, high strength safety factor to ensure the safety of whole truss in the working process.
 The first rotating mechanism equipped with electrical limit ensure the safety for whole operation progress, to prevent misuse.

Control mode:
Three control modes: Remote control, panel, manual, all can control the related action of the vehicle.
 Three control modes can be quickly switched and also can be interlocked.
 Three control modes has indicator lights to indicate the function, easy to operate.
Hydraulic system:
 It is consists of hydraulic pump, hydraulic motor, lifting hydraulic cylinder, telescopic hydraulic cylinder, supporting wheel cylinder, hydraulic valve and hydraulic accessories.
 Hydraulic pipelines using ferrule-type compression joint and precision seamless steel tubes.
 Hydraulic valves using WALVOIL(Italy) and HAWE(Germany) brand.
 Hydraulic pump using HAWE(Germany) brand.

Electrical system:
Controller: EPEC(Finland)
Display screen: ESA(Italy)
Electric switch: SCHNEIDER(France)
Electrical system using DC 24V.
Proximity switch using inductive and photoelectric.
It has self-diagnostic function.
It has parameters auto-recovery function.

Lighting device:
 Vertical truss mounted lights which used for night work.
 Equipped strobe lights and arrow indicator which used for working alarm indication.
Headlight assembly and taillights assembly(High beam light/turn light/reversing light/stop light/outline marker lamps)

Safety protection device:
 Display has hydraulic oil filter warning light, when the oil filter is blocked that the indicator lights, then should be clean or replace the filter.
 Equipped the supporting wheel position indicator, when the supporting wheel are not in position so can’t allowed to operate the truss; The operator can’t drive when the supporting wheel has not retracted fully.
 The fixed place of the vertical truss and horizontal truss installed tubular cushion rubber anti-collision devices.
 Each proximity switch installed on supporting frame of main boom and truss gantry, when the truss retract not in position that the supporting wheel can’t retract.
 At the front and rear of vehicle are installed the tow hooks to pull forward or backward, it used in the engine and transmission failure and malfunction.
 Equipped with reversing buzzer(BB sound) warning device.
 Instrument panel equipped with parking brake indicator(P).
 The supporting wheel equipped with protective circle which made of rubber to protect the operator’s feet are not crushed.
 Equipped with vertical truss mechanical locking device to prevent accidental landing when a failure happens for hydraulic cylinder, to ensure the safety of operator.
 The action sequence with a circuit interlock function.
 When main oil pump happen failure, use the emergency pump can realize the operation for the bridge inspection vehicle.

Emergency operation and protection:
 All cylinders installed the hydraulic lock, it played the role of insurance.
 Equipped with emergency power and emergency pump to retract the vehicle in emergency situations, to ensure the vehicle promptly evacuated.
 Press the emergency stop switch in case of emergency, all hydraulic actions immediately stop and engine also stop.
 Rear axle installed four stabilizer cylinders, stable the spring steel when working.

Manual:

Provide operation manual and maintenance manual with vehicle(Chinese version or English version.)

Label:

Control panel, all safety instructions and other signs are produced by Chinese or English version.

Standard configuration list(Main components/Imported parts/Brand pieces)

Components name Spec./Model Brand Original
Proportional multi-way valve PSL 4H1F-350-3 HAWE Germany
Plunger pump K60N-047LDN-A45/42 HAWE Germany
Retarder motor CDM222-050 POCLAIN France
2nd rotating bearing QWC900.25 ANNAITE China
Slewing Reducer RR210DSS/12.94 RR Italy
High pressure filter DF BN/HC140TC10 HYDAC Germany
Multi-way valve for supporting wheel SD5/3-P(JG3-160) WALVOIL Italy
Balance valve for retarder motor A070461.02.00 HBS Italy
Standby generator KL3200 KOHLER U.S.A
Emergency pump 5MCY-Y132M-4 YUFENG China
Remoter controller HYPRO CANOPEN NBB Germany
Main Controller 2024(KRC-6040) EPEC Finland
Assistant controller 2023(KRC-6030) EPEC Finland
Tilt angle sensor KRI-XD-360-CAN KRI Germany
Tilt angle sensor KRI-XD-30-CAN KRI Germany
Display KRH-5110/24V/CAN ESA Italy

Drawing for outer dimensions(Front, side and working state side)

FAW chassis National V 15+2m aluminum platform Bridge Inspection Truck  good performance safe stableFAW chassis National V 15+2m aluminum platform Bridge Inspection Truck  good performance safe stable

Optional Equipment:



No.

Equipment name Optional range Performance specification Remark
1 Control mode Manual/Panel/Remote Can choose all or one or two of them. To be clear before ordering.
2



Chassis

VOLVO, BENZ, INTERNATIONAL,

DONGFENG, FAW

According to customer requirement To be clear before ordering.
3 Lifting parapets Imported brand or Domestic brand According to customer requirement To be clear before ordering.
4



Step ladder

2m/3m According to customer requirement To be clear before ordering.
5



Lifting platform



One layer/Two layer

According to customer requirement To be clear before ordering.
6 Generator 3KW/5KW Auxiliary power supply To be clear before ordering.
7 Rest chair for staff 1 PC/2PCS Rest for staff To be clear before ordering.
8 Operator seat General seat/Special seat Rest for operator To be clear before ordering.
9 Power control box 220V/380V/24V Provide the power supply when working. To be clear before ordering.
10



Drip device



50L/100L/200L, Carbon steel or Stainless steel



Supplementary the brake system to prevent the wheel hub or brake disc overheating.



To be clear before ordering.

11



Tool box



Optional



Easy storage



To be clear before ordering.



Contact Details
HANGZHOU SPECIAL AUTOMOBILE CO.,LTD

Contact Person: Serena Liu

Tel: +86-571-86875791

Send your inquiry directly to us (0 / 3000)
