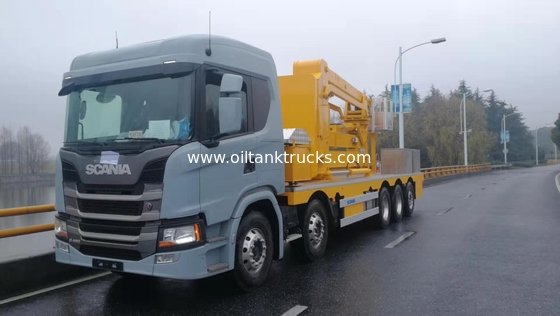

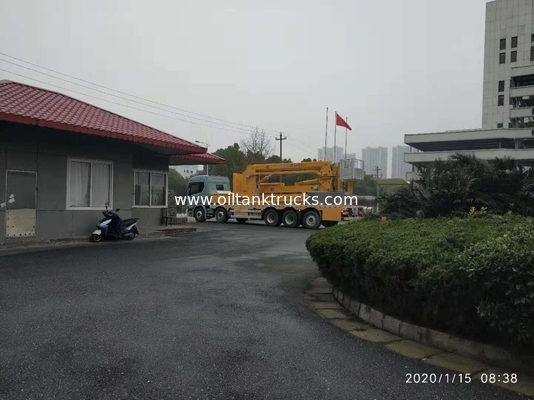

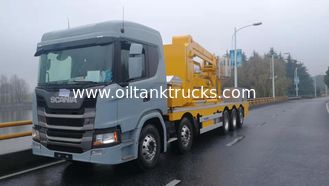

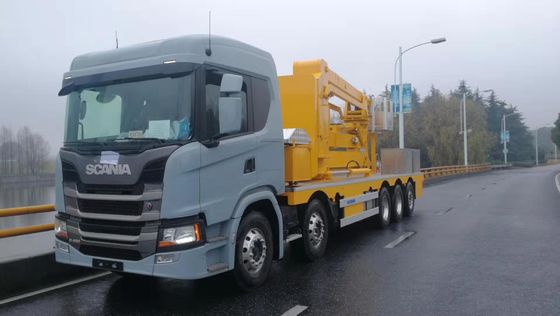

Bucket Type Bridge Inspection Vehicle 22 M Platform Type

Bucket Type Bridge Inspection Vehicle 22 M Platform Type
Bucket Type Bridge Inspection Vehicle 22 M Platform Type Bucket Type Bridge Inspection Vehicle 22 M Platform Type Bucket Type Bridge Inspection Vehicle 22 M Platform Type

Large Image :  Bucket Type Bridge Inspection Vehicle 22 M Platform Type

Product Details:
Place of Origin: China
Brand Name: HSA
Certification: ISO9001, CCC
Model Number: HSA5319JQJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy package
Delivery Time: 60-90 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 97 sets per year
Detailed Product Description
Working Length: 22m Load Of Working Platform: 400kg/800kg
Open Time: Less Than 5 Minutes Self Propelled: Transfer Case
Road Occupation: Occupy One Lane When Working Total Weight: 31 Tons
Sidewalk Width: 3.5m Sound Barrier Height: 4.5m
Auto Backward And Forward: Yes
High Light:

22M Platform Bridge Inspection Trailer

,

Bridge Inspection Trailer Bucket Type

,

800kg Load Bridge Inspection Vehicle

Special Factory Make 22 M Platform Type And Bucket Type Bridge Inspection Vehicle New Product

best seller bridge inspection vehicles bucket type and platform type



With increasing numbers of bridges in the world, safety of bridges becomes a top priority. This needs periodic inspection on all parts of the bridge, which are not easily accessible. These inspections are primarily visual and require hands-on observations in order to check for loose and broken hardware, corrosion, insect damage, and a multitude of other maintenance and safety issues. We offer an two models of Bridge Inspection truck. One is basket model and the other is platform model. Our bridge inspection trucks are Versatile, efficient and lightweight, they can help you with all your bridge inspection and maintenance needs.



Road bridges carrying passengers and vehicles are required a routine inspection every year. Meeting these requirements often involves the use of specialized heavy machinery, such as an under-bridge inspection truck, to gain access. We provide two models of Bridge Inspection truck. One is basket model and the other is platform model. Our bridge inspection trucks are Versatile, efficient and lightweight, they can help you with your bridge inspection and maintenance needs.

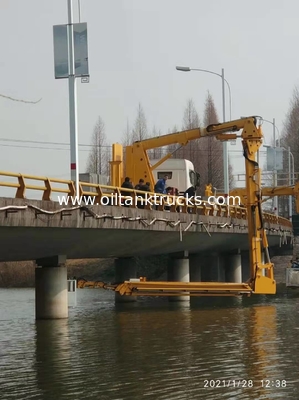

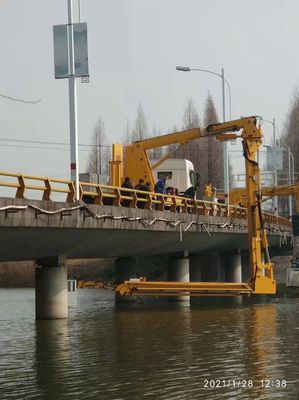

our bridge inspection and maintenance trucks which allow workers to manoeuvre safely into position for hands on inspection and maintenance work. Our bucket type trucks have a basket capable of reaching above, alongside and below a variety of bridge structure types and sizes. The Truck make sure work to be done safely, without interrupting traffic, work within only one traffic lane.


Bucket Type Bridge Inspection Vehicle 22 M Platform Type 0

  1. Specifications:
Structure type of bridge inspection vehicle Platform type
Max. Horizontal working range 22M (72’)
Max. vertical working depth 8000mm (26’)
Width of work platform 1080mm
Max. load on Truss platform 800KG (1763lb)
Max. load on telescopic Truss platform 400KG(881lb)
Max. Width of sidewalk spanning 3500mm (9.8’)
Max. height of guardrail spanning 4500mm (14.5’)
The 1st rotation angle scope 0~90°
The 2nd rotation angle scope 0~1800
Max. amble travelling speed 15m/min
Operation Mode Wireless Remoter , Panel, Emergency manual
Drive system Two drive system: PTO and gasoline generator
Amble self travelling device Transfer case instead of amble motor
Chassis Volvo FM420 84RB
G.V.W 31000KG
Overall dimensions 12560(L)×2500(W)×4000 (H)mm





3. MBIU working video on youtube



Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be



Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
