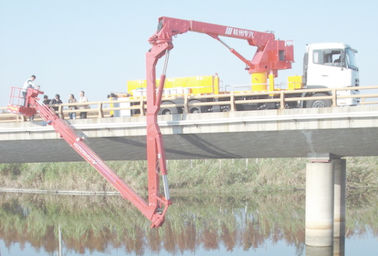

Boom Type Under Bridge Inspection Equipment Dongfeng Chassis 6x4 245HP / 270HP

Boom Type Under Bridge Inspection Equipment Dongfeng Chassis 6x4 245HP / 270HP
Boom Type Under Bridge Inspection Equipment Dongfeng Chassis 6x4 245HP / 270HP Boom Type Under Bridge Inspection Equipment Dongfeng Chassis 6x4 245HP / 270HP Boom Type Under Bridge Inspection Equipment Dongfeng Chassis 6x4 245HP / 270HP Boom Type Under Bridge Inspection Equipment Dongfeng Chassis 6x4 245HP / 270HP

Large Image :  Boom Type Under Bridge Inspection Equipment Dongfeng Chassis 6x4 245HP / 270HP

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5250JQJ16
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 2Units/Month
Port of Delivery:: Shanghai/Ningbo
Detailed Product Description
Model: HZZ5250JQJ16 Chassis: DFL1250A12 (Euro 4)
Dimension: 11200×2500×3950 Mm Power Of Engine: 245HP / 270HP
G.V.W.: 25000 Drive Type: 6x4
Hydraulic System: Electro-hydraulic Proportional Servo System
High Light:

bridge inspection vehicle

,

bridge inspection access equipment

,

Boom Type Underbridge Access Equipment


Boom Type under bridge access equipment Dongfeng chassis (Euro 4) 6x4 245HP / 270HP


Quick Details:

Model: HZZ5250JQJ16
Product name: Boom Type Bridge Inspection Vehicle
Chassis Model: DFL1250A12 (Euro 4)
Driver type: 6×4


Maximum Net Power of Engine: 245HP / 270HP

Overall dimensions: 11200×2500×3950 mm
Main Description

Boom Type Bridge Inspection Vehicle is the latest operating vehicle which independently developed by our company, it has good exterior, compact structure, easy to operate, safe and reliable features. The chassis using domestic Dongfeng chassis, main hydraulic parts imported from Germany , the dedicated device uses three scalable, two rotating , three luffing mechanism, forming a three-dimensional space, six degrees of freedom space motion system, can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed.

Bridge Inspection Truck:

Products in the design process to break the traditional design, with a unique extended hydraulic drive legs, increasing the lateral stability of a dedicated device at work, so that the operator can work in safer conditions. Outrigger legs using crawler structure, add the contact area to get small compressive stress for legs . It has two advantages: A large contact area relative to the ground friction,it does not produce slip phenomenon during operation; Small leg stress reducing leg caused the ground damage. The hydraulic system uses a modular structure, centralized control, hydraulic piping distribution uses reasonable standard. The control system uses advanced CAN architecture, wireless remote control, advanced control concept , high intelligence.

The operator can directly control the rotation of the track through a wireless remote control, to achieve bridge inspection vehicle working and walking. There is one screen in the control box panel, you can monitoring the operating conditions for each of the full range of video surveillance, and set the parameters of the controller or modify. It also equipped with an standby gasoline generator, when the chassis has failure it can be operated independently by standby power.
Our company currently has HZZ5240JQJ16, HZZ5310JQJ18 series of bridge inspection vehicle products. The series has the world's advanced hydraulic system, safety and reliable electric control system, user-friendly interface, won the praise of users



Specifications:


ModelHZZ5250JQJ16
Drive Type6×4
Chassis Model DFL1250A12(Euro 4)
Engine ModelISDe245 40/ISDe270 40
Maximum Net Power of Engine245HP/270HP
G.V.W. 25000 kg
Overall dimensions11200×2500×3950 mm
Horizontal Operation Range Under Bridge0mm-16410mm
Maximum Vertical Operating Range Under The Bridge0mm-23300mm
Maximum Width for Crossing Sidewalk3000mm-5400mm
The First Scope Rotation Angle0~90°
The Second Scope Rotation Angle0~180°
Maximum Loading Capacity for Platform250KG
Hydraulic SystemElectro-hydraulic Proportional Servo System
Control ModeManual/Wired/Remote


Competitive Advantage:


Leading Technology;
Optimization Chassis: Dongfeng;
Reliable Performance;
Strong Operating Platform Capabilities;
Work Safety;
Powerful Communication Function;
With Complete Accessory;
High Adaptability To Circumstance

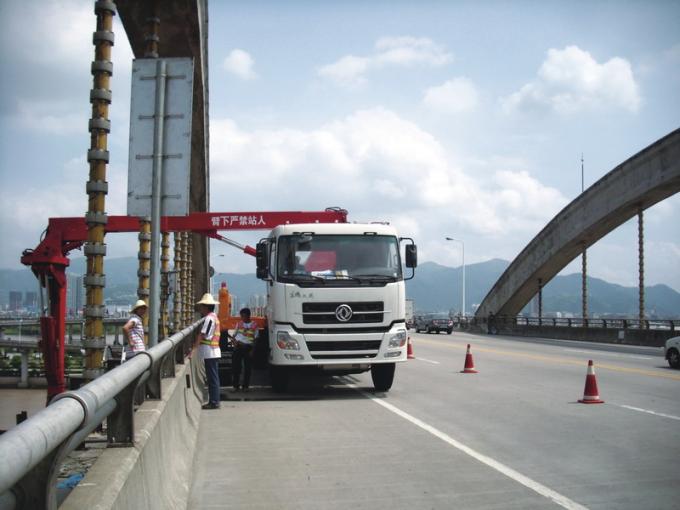

Boom Type Under Bridge Inspection Equipment Dongfeng Chassis 6x4 245HP / 270HP 0

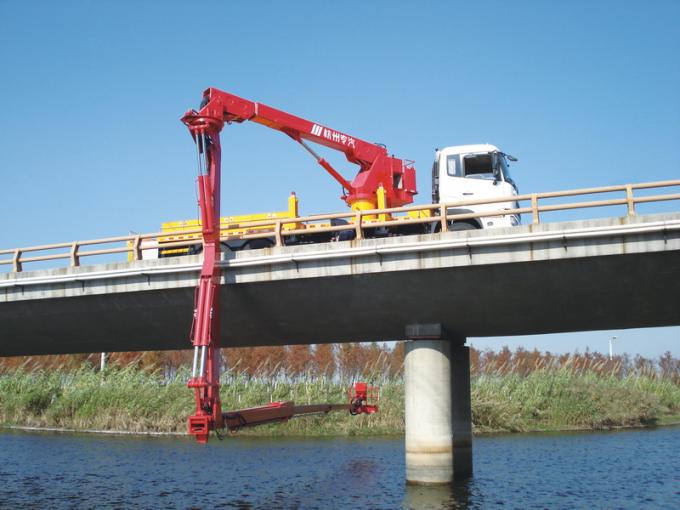

Boom Type Under Bridge Inspection Equipment Dongfeng Chassis 6x4 245HP / 270HP 1
