Under Bridge Inspection Units Designed For bridge Maintenance and repair job

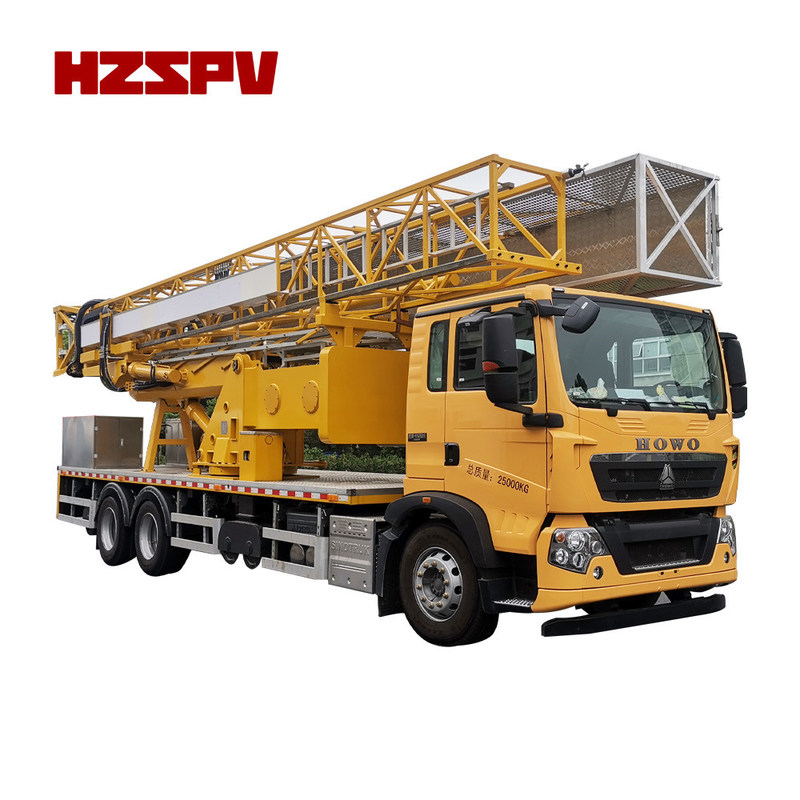

Large Image : Under Bridge Inspection Units Designed For bridge Maintenance and repair job

Product Details:

Place of Origin:	China
Brand Name:	HSA
Certification:	ISO9001, CCC
Model Number:	HSA5251JQJ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	lude
Delivery Time:	90 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	150 sets per year

Contact Now

Detailed Product Description

Horizontal Working Length:	15m	Related Load Capacity Of Platform:	300kg/600kg
Erecting Time:	Self Erecting Within 5 Minutes	Self Propelled:	KB Transfer Case
Road Occupation:	Single Lane Operation	Sound Barrier Overcrossing:	4.5m
Crossing Sidewalk Width:	3.5m
High Light:	Self Erecting Underbridge Inspection Unit , 15m Bridge Inspection Units , Wireless Remote Bridge Inspection Units

China newest platform type under bridge inspection truck from HSA

The platform type bridge inspection truck is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.

It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.

Idea for all under-bridge project: inspections, repairs, stripping operations, painting and sandblasting, general underbridge maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.

Cab optional air condition, driver’s seat can be moved front and back, back and lift height of the seat can be adjusted, the cab also can take 2 passengers.
Instrument board configuration: Speedometer, water temperature, fuel gauge, engine speed recorder,alarm indicator, gear position indicator light,turning indicator light.
Rear axle equipped with four hydraulic cylinder for supporting wheel, supporting the chassis frame when working, to increase stability and safety for the vehicle.
The control panel equipped with button or switch for hydraulic pump control, transfer case(retarder motor) control, walking control.

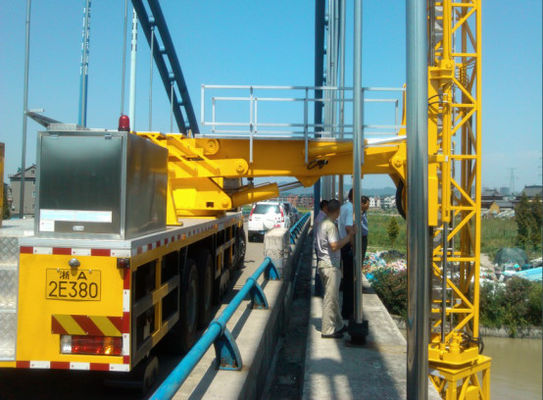

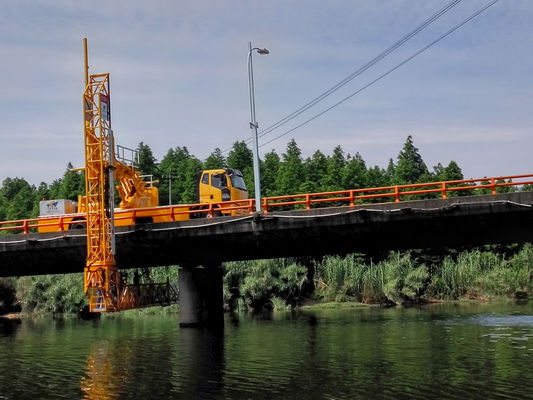

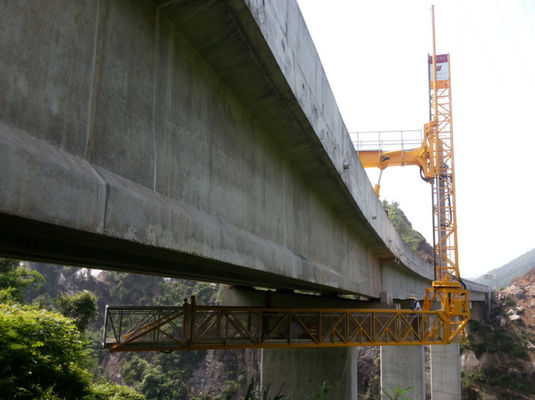

Under Bridge Inspection Units Designed For bridge Maintenance and repair job 0

Specifications:

Structure type of bridge inspection vehicle	Platform type
Max. Horizontal working range	15M
Max. vertical working depth	8000mm
Width of work platform	1080mm
Max. load on Truss platform	600KG
Max. load on telescopic Truss platform	300KG
Max. Width of sidewalk spanning	3000mm
Max. height of guardrail spanning	4200mm
The 1st rotation angle scope	0~90°
The 2nd rotation angle scope	0~180⁰
Max. amble travelling speed	15m/min
Operation Mode	Wireless Remoter , Panel, Emergency manual
Drive system	Two drive system: PTO and gasoline generator
Amble self travelling device	Transfer case instead of amble motor
Chassis	HOWO 6X4
G.V.W	25000KG
Overall dimensions	11560(L)×2500(W)×4000 (H)mm
