Truck Mounted Attenuator Traffic Management Attenuator 4HK1-TC51 Engine FZ09QL00

China Truck Mounted Attenuator Traffic Management Attenuator 4HK1-TC51 Engine FZ09QL00 supplier
Truck Mounted Attenuator Traffic Management Attenuator 4HK1-TC51 Engine FZ09QL00 supplier Truck Mounted Attenuator Traffic Management Attenuator 4HK1-TC51 Engine FZ09QL00 supplier

Large Image :  Truck Mounted Attenuator Traffic Management Attenuator 4HK1-TC51 Engine FZ09QL00

Product Details:

Place of Origin: hangzhou,china
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5090TFZ

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: 30% T/T as advanced payment after signed contract, and 70% residual payment paid after buyer’s inspe
Supply Ability: 8 Units/Months
Detailed Product Description

Truck mounted attenuator safety Attenuator Truck safety Effective work zone

Main characteristic:
1.Reliable Performance
The truck is equipped with special automobile anti-collision buffer vehicle buffer device and large LED display with arrow mobile security features on the automobile chassis, can be used for safety protection of highway, municipal engineering, city road, elevated road and other roads on mobile maintenance, temporary road construction and traffic accident or emergency. The purpose is to protect the construction or rescue personnel, construction equipment free from traffic accidents, to avoid a second accident, can also greatly reduce the vehicle damage.

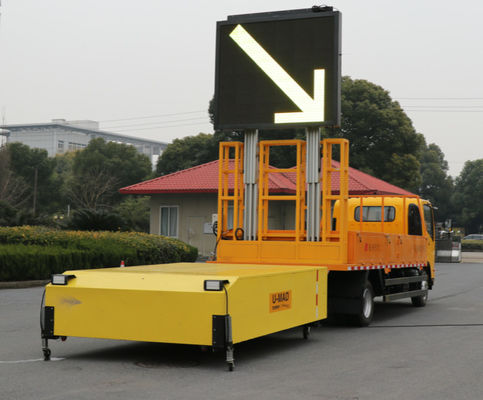

2.LED Display screen
With a large LED display which can raise and lower. Can rise up about 1.8 meters as a whole. The maximum height of the display screen is about 4.88 meters. The contents of the display can be custom-made, usually showing red or yellow scintillating guide arrow. The display has a WIFI signal input function, and the operator can control arrowhead guidance and text input in the cab.

Main description:

Attenuator Truck is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features. It is a device intended to reduce the damage to structures, vehicles, and motorists resulting from a motor vehicle collision. It is designed to redirect the vehicle away from the hazard or away from roadway machinery and workers. Usually placed in front of fixed structures near highways, such as gore points, crash barrier introductions, or overpass supports.

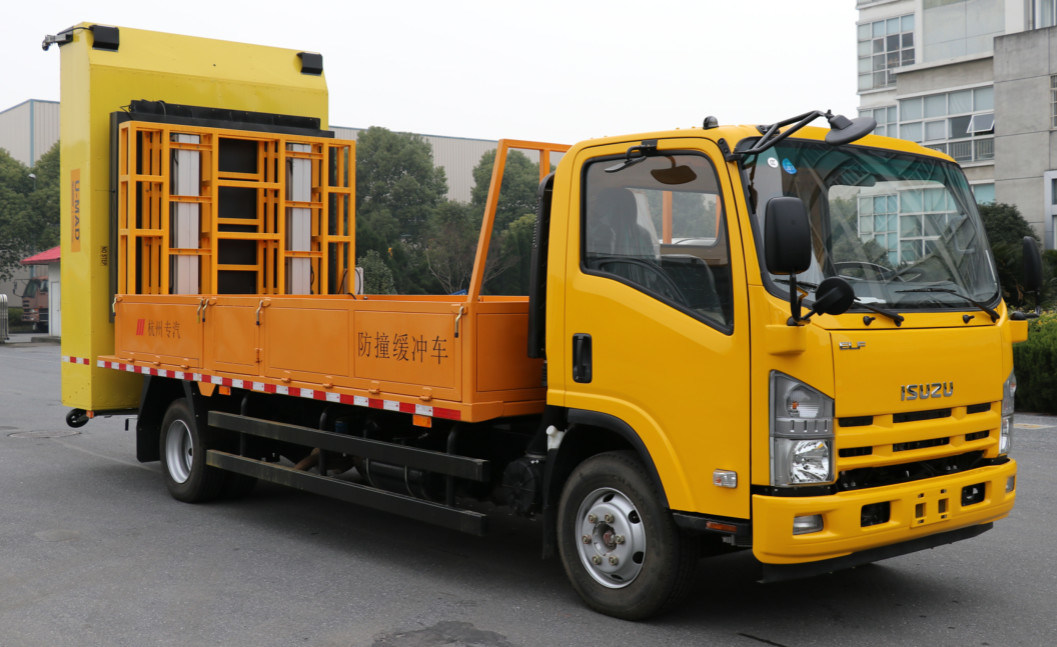

Truck Mounted Attenuator Traffic Management Attenuator 4HK1-TC51 Engine FZ09QL00

Attenuator Truck used ISUZU chassis, drive mode is 6 × 4, with a good view cab with air conditioning system and FM / AM radio.


Truck Mounted Attenuator Traffic Management Attenuator 4HK1-TC51 Engine FZ09QL00


Main specification for Attenuator Truck:


category Item Specification
Vehicle Product model HZZ5090TFZ
Product standard FZ09QL00
Product name Attenuator Truck
Outline dimension(L×W×H) 8050×2450×3900mm
Kerb weight Total weight(kg) 9005
Front axle(kg) 3155
Rear axle(kg) 5850
Full load weight Total weight(kg) 9200
Front axle(kg) 3350
Rear axle(kg) 5850
Max. speed(km/h) 110
Chassis Chassis model QL1100A8MAY
Engine Model 4HK1-TC51
Displacement(L) 5.193
Rated power/Rotate speed(kw/r.p.m) 141/2600
Max. Torque/Rotate speed (Nm/r.p.m) 513/1600
Max. Clear power (KW) 140
Wheelbase Front(mm) 1680
Rear(mm) 1650
Min. Turning circle diameter(m) ≤15
Min. Ground clearance(mm) 215
Approach angle(0) 17
Departure angle(0) 10





Crash prevent buffer device

Manufacturer USA Lindsay
Model 100K(2000kg-70 km/h)
Buffer device total weight(kg) 800
Hydraulic pressure 11
Buffer device lifting speed (s/journey) 10±5

LED
Display screen

Manufacturer Hangzhou Wuhu
Size of display screen(L×W)(mm) 1920×1600
LED module specification P10 LED module
Module image resolution 32×16
Brightness(cd/㎡) ≥6000
Max. Power consumption(W/㎡) 500
Power input(V) AC220
Output Wifi /flat computer
Visible distance(m) ≥300
Lifting device Manufacturer Hangzhou Saiqi
Max. Journey(mm) 1800
Max. Lifting height(mm) 5000
Max. Lifting weight(kg) 250
Hydraulic pressure(MPa) 11
Container size(mm) 4720×2350×500
Lifting light(optional) Manufacturer Jiangsu Ouhui
Model SFW6110
Engine Brand Honda
Rated output electric pressure(V) 220
Rated output power(W) 2000
Light(4PC) Working pressure(V) 220
Power(W) 4×500
light quantity(lm) 4×10000
Lifting bar Max. Lifting height(mm) 4500
Drive mode Pneumatic
