22cbm Dongfeng 4x2 Dry Bulk Truck Hydraulic Lifting System

China 22cbm Dongfeng 4x2 Dry Bulk Truck Hydraulic Lifting System supplier

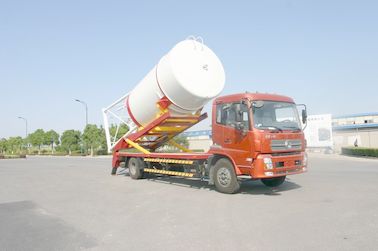

Large Image :  22cbm Dongfeng 4x2 Dry Bulk Truck Hydraulic Lifting System

Product Details:

Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5120ZBG

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: Negotiable
Packaging Details: Wax Spray
Delivery Time: 45days
Payment Terms: LC, TT, Paypal, Western Union
Supply Ability: 4Units/Month
Port of Delivery:: Shanghai/Ningbo
Detailed Product Description
Outer Dimension: 9700×2490×2760 Wheelbase(mm) Front/Rear Tread (mm): 5600 1880/1800
Front/Rear Overhang (mm): 1460/2670 Tare Weight(kg): 8805
Payload(kg): 3000 Total Mass(kg): 12000
Model: DFL5120XXYB1 Nominal Storage Volume(m3): 22
Emission Standard: National III

Dry Bulk Truck 22cbm Dongfeng 4x2 Hydraulic Lifting System

Quick Details:
1. Name: Dry Bulk Carrier
2. Hydraulic System: Lifting type with self-loading and unloading system
3. Chassis: Dongfeng
4. Drive Type: 4x2
5. Tank Capacity: 22cbm
Fully hydraulic lifting and loading system, can be completed whole operation by few labour.
The set of hydraulic lifting system was a developed product, pantented technical cooperate with Germany “GERGEN”.

Main arms in gooseneck design(patented) ensure pick-up and deposit out of angle position up to 45°. Pneumatic proportional control for main cylinder. Loading platform in front with integrated hose guiding and protection. Hydraulic van locking for safe and rapid operation. Rear loading platform, short overhang. can greatly achieve and complete the loading/unloading selfly, educe cost, avoid time-wasting, and save more labour.


Basic Specs:
1. Tank Diameter: 1800-2500mm
2. Discharge redisdual ratio: ≤1.5m³
3. Turnovers: 0~95(°)
4. Tank Loading Mass: ≤4200kg
5. Lift Height: 5500~6000mm


Specifications:

The whole
 Vehicle

Dimension

Outer dimension

9700×2490×2760

Gearbox

 Mode

DF6S750

 Type

manipulation

Wheelbase(mm)
Front/Rear Tread
(mm)

5600
1880/1800

Manufacturer

Dong Feng Automobile Co.Ltd.

Operation

Soft axle manipulation

Front/Rear overhang
(mm)

1460/2670

Forward stalls

six

Approach/Departure
 (°)angle

20/9

Speed Ratio

6.44/3.841/2.29/1.477/1
/0.802/5.802

Quality

Tare weight(kg)

8805

Engine

Type and model

Electronic pressurized water-cooled cylinder diesel engine

Payload(kg)

3000

Total mass(kg)

12000

 Model

ISDe185 30

Special
parameter

Mortar tank
weight(Kg)

≤3000Kg

Manufacturer

Dongfeng Cummins
 Engine Co.Ltd.

Residual rate(m3)


≤1.5


Displacement(mL)

4.5

Turn round angle(°)

0-92

Fuel type

Diesel

chassis

 Model

DFL5120XXYB1

Emission standard

National III

Type

Second

Manufacturer

Dong Feng
Automobile
Co.Ltd.

Max.speed(km/h)

90

No of axle

2

STORAGE TANK FOR DRY-MIXED MORTAR

 Type of tank

 CG storage-35t

Nominal storage volume(m3)

22 m3

Discharge valve diameter(mm)

250

Height of discharging(mm)

750

torage weight(Kg)S

35000

Tare weight(Kg)

2900

Diameter(mm)

2400

 Distance of foot spacing(lateral)

2.1m×2.1m

Drive motor power(KW)

5.5

Water pump power(W)


750

Vibration pump power(W)


370
