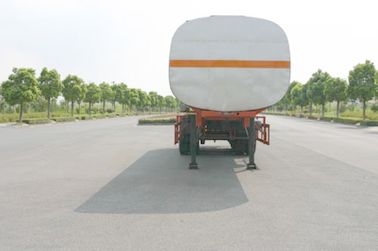

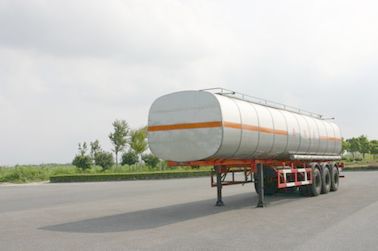

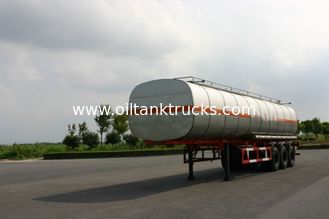

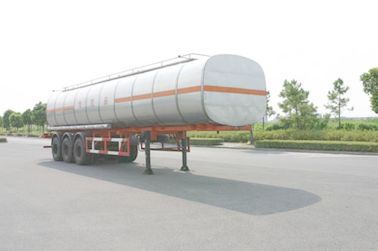

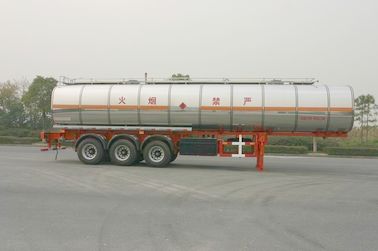

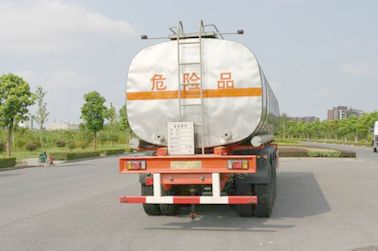

40800L 3x13T Fuwa Axle Insulated Liquid Oil Tank Trailer Truck for Chemical Delivery

40800L 3x13T Fuwa Axle Insulated Liquid Oil Tank Trailer Truck for Chemical Delivery
40800L 3x13T Fuwa Axle Insulated Liquid Oil Tank Trailer Truck for Chemical Delivery 40800L 3x13T Fuwa Axle Insulated Liquid Oil Tank Trailer Truck for Chemical Delivery 40800L 3x13T Fuwa Axle Insulated Liquid Oil Tank Trailer Truck for Chemical Delivery 40800L 3x13T Fuwa Axle Insulated Liquid Oil Tank Trailer Truck for Chemical Delivery 40800L 3x13T Fuwa Axle Insulated Liquid Oil Tank Trailer Truck for Chemical Delivery

Large Image :  40800L 3x13T Fuwa Axle Insulated Liquid Oil Tank Trailer Truck for Chemical Delivery

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ9400GYY
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10 Units/Months
Port of Delivery:: Shanghai/Ningbo
Detailed Product Description
Model: HZZ9400GYY Outer Dimension(mm): 12360×2480×3600
Tank Effective Volume (m3): 40.8 Transporting Medium: Gas/Diesel
Wheelbase (mm): 6780+1320+1320 Number Of Axle: 3
Tare Weight(Kg): 12450 Payload(Kg): 27550
Spec. Of Tyre: 12.00R20 Number Of Spring Steel Plate: 8/8/8
High Light:

oil tanker truck

,

fuel tanker trailers

40800L (10,778 US Gallon) 3x13T Fuwa Axle Insulated Liquid (Non-harzard Property) Tank Trailer for  Liquid Property Delivery



Quick Details

Use: Truck Trailer

Type: Semi-Trailer

Material: Carbon Steel/SUS

Certification: ISO & CCC

Size: 12360×2480×3600

Model Number: HZZ9400GYY

Axles: 3

Valume: 40800L

ABS: Haldex



Normally for transport the gasoline, light diesel oil, petroleum and other non-corresive fuel properties, rarely impact the damage for other components, widely used in various transportation units, gas stations and other logistic industries.The logistic vehicle series mainly included Pressured and Non-pressured Tank Transportation vehicles. Material optional for Carbon-steel, Stainless steel, Aluminum alloy




Component:

  1. Main frame is made of high strength low alloy steel, which can fully enhance its abilities of resistance to torsion, anti-seismic and anti-jolt, and meet the various loading requirements.
  2. The tanker is produced with the special equipments such as automatic welding machine(8m) and CNC plasma cutting and automatic submerged arc welding forming which can realize welding by one side in shape by two sides, having the merits of stable quality, less cost, and good-looking
  3. Sophisticated technique: Main parts of the trailer is processed with advanced equipment. The longitudinal beam is welded by a wholly automatic tracking submerged welding machine; Almost the steel spare parts are treated by shot blast before the assembling, which can greatly increase the adhesion of the paint.
  4. Frame: The frame is manufacture by a 40800L 3x13T Fuwa Axle Insulated Liquid Oil Tank Trailer Truck for Chemical Delivery 0structure, which are made of high strength steel. This design reasonably to get a balanced consideration of the intensity, rigidity and toughness, advantages of low tare weight, heavy loading mass, not easy to be distorted.
  5. Axles: The axle can be selected in different famous brand of BPW and SAF, KIC, FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
  6. Suspension system: Mechanical suspension and air suspension series optional.a. Mechanical suspension series: It used tandem and balance construction, have high strength and strong impacting resistance, evenly distribute the axle load into each axles. High strength material keep the service life much longer and efficient buffering, simple maintenance, easy replacement for the wearing parts.b. Air suspension system: Optional BPW & SAF. More shocking proof which combinated with lifting and steering axles.
  7. Brake system: Much more safety and reliability on dual-loop air brake system.
  8. Air compressor: Displacement can be choosen upto 12cbm/min




Specifications:

Model

HZZ9400GYY

Outer dimension(mm)

12360×2480×3600

Tank Effective Volume (m3)

40.8

Transporting Medium

Gas/Diesel

Wheelbase (mm)

6780+1320+1320

Number of Axle

3

Tare weight(Kg)

12450

Payload(Kg)

27550

Spec. of Tyre

12.00R20

Number of spring steel plate

8/8/8
