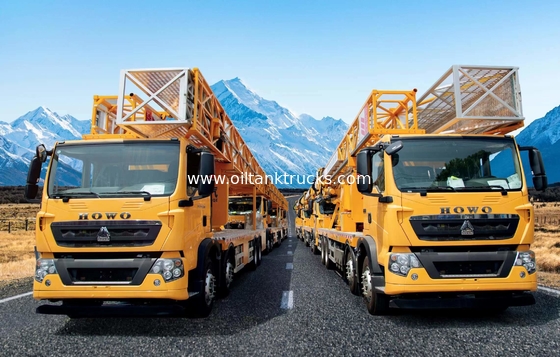

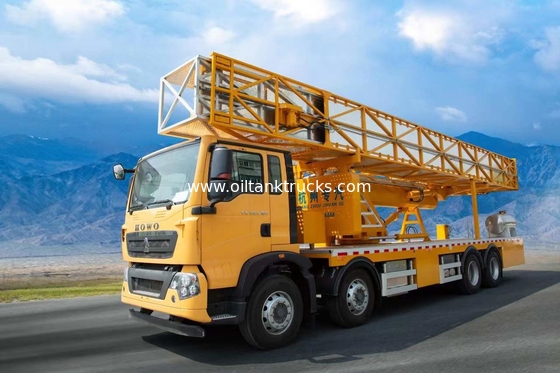

22m Platform Type Bridge Inspection Vehicle For Repair And Maintenance

22m Platform Type Bridge Inspection Vehicle For Repair And Maintenance
22m Platform Type Bridge Inspection Vehicle For Repair And Maintenance 22m Platform Type Bridge Inspection Vehicle For Repair And Maintenance 22m Platform Type Bridge Inspection Vehicle For Repair And Maintenance 22m Platform Type Bridge Inspection Vehicle For Repair And Maintenance

Large Image :  22m Platform Type Bridge Inspection Vehicle For Repair And Maintenance

Product Details:
Place of Origin: China
Brand Name: HSA
Certification: ISO9001, CCC
Model Number: HSA5318JQJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: lude
Delivery Time: 90 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 150 sets per year
Detailed Product Description
Horizontal Working Range: 22m Capacity: 400kg/800kg
Self Propelled: With Transfer Case Road Occupation: Single Lane Operation
Sidewalk Width: 3.5m Sound Barrier: 4.5m
Under Bridge Depth: 8.5m
High Light:

Howo Bridge Inspection Vehicle

,

400kg Load Bridge Inspection Vehicle

,

Howo Bridge Inspection Vehicle

22m Platform Type Bridge Inspection Vehicle For Bridge Inspection, Repair And Maintenance

Bridge Inspection Vehicle Designed For Bridge Inspections

Generally, bridges are inspected every two years, with some older or lower-rated bridges inspected more often.



Inspectors, who are trained engineers, largely perform detailed visual inspections of the three major structures of a bridge — the deck on which vehicles drive, the structure that carries the deck, and the substructure or culverts that hold up that superstructure. Other inspection methods are used underwater or when needed to determine whether corrosion has affected the weight a bridge can carry.

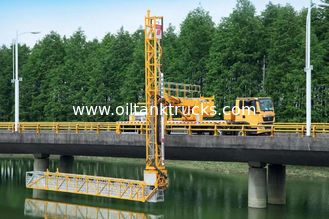

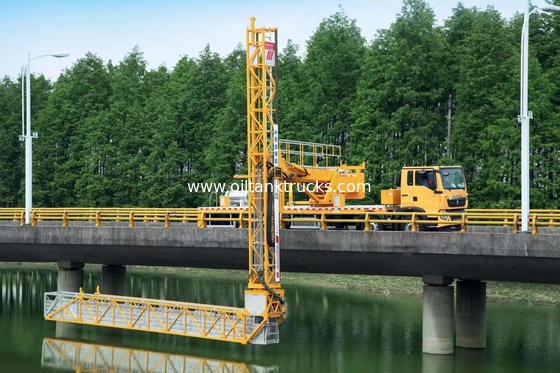

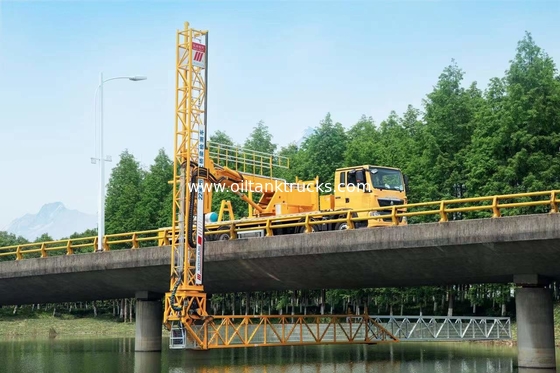

Our platform type bridge inspection truck  is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.

It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.




22m Platform Type Bridge Inspection Vehicle For Repair And Maintenance 0

  1. Specifications:
Structure type of bridge inspection vehicle Platform type
Max. Horizontal working range 22M (72’)
Max. vertical working depth 8000mm (26’)
Width of work platform 1080mm
Max. load on Truss platform 800KG (1763lb)
Max. load on telescopic Truss platform 400KG(881lb)
Max. Width of sidewalk spanning 3000mm (9.8’)
Max. height of guardrail spanning 4400mm (14.5’)
The 1st rotation angle scope 0~90°
The 2nd rotation angle scope 0~1800
Max. amble travelling speed 15m/min
Operation Mode Wireless Remoter , Panel, Emergency manual
Drive system Two drive system: PTO and gasoline generator
Amble self travelling device Transfer case instead of amble motor
Chassis brand Howo
G.V.W 31000KG
Overall dimensions 12560(L)×2500(W)×4000 (H)mm




2. Competitive Advantage:



  • Optimization Chassis

Adopted Chinese brand Howo chassis,  large engine power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work, high quality and competitive price.

  • Reliable Performance

The key parts of the hydraulic system, electrical system and control system all adapts imported well-known brand components, with stable and reliable performance,, ensure the fast reaction and stable performance.





3. Market



Our Bridge Inspection Vehicles have been exported to South Korea, Brunei, Malaysia, Vitenam, Maldives, Indonisia and etc.

22m Platform Type Bridge Inspection Vehicle For Repair And Maintenance 1



4. MBIU working video on youtube:



Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be



Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
